Spring Loaded Bracket Assy

Home
Spring Loaded Bracket Assy

Part Name

SPRING LOADED BRACKET

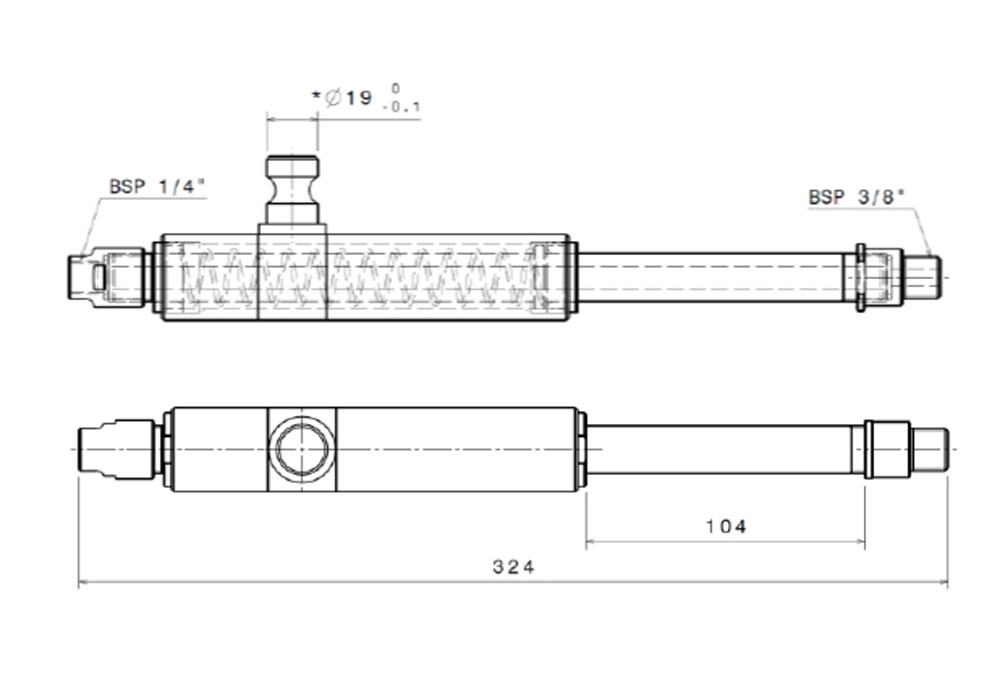

SPRING LOADED BRACKET Drawing 1

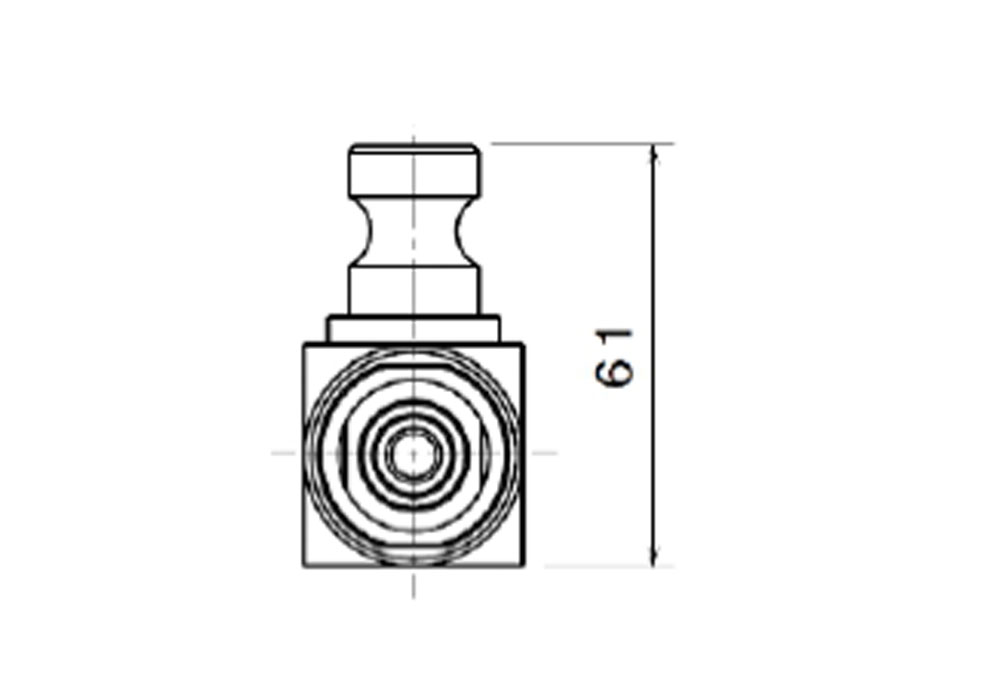

SPRING LOADED BRACKET Drawing 2

Part Name : SPRING LOADED BRACKET

Part No. : SAPL-SLB-SL100-001

Specification

Dimensions :	32X61X324 MM
Stroke Length :	100 MM
Body Material :	ALUMINUM (6061T6)
Cup & Pneumatic Attachments Material :	Brass
Part Weight :	0.49 Kg

SPRING LOADED BRACKET

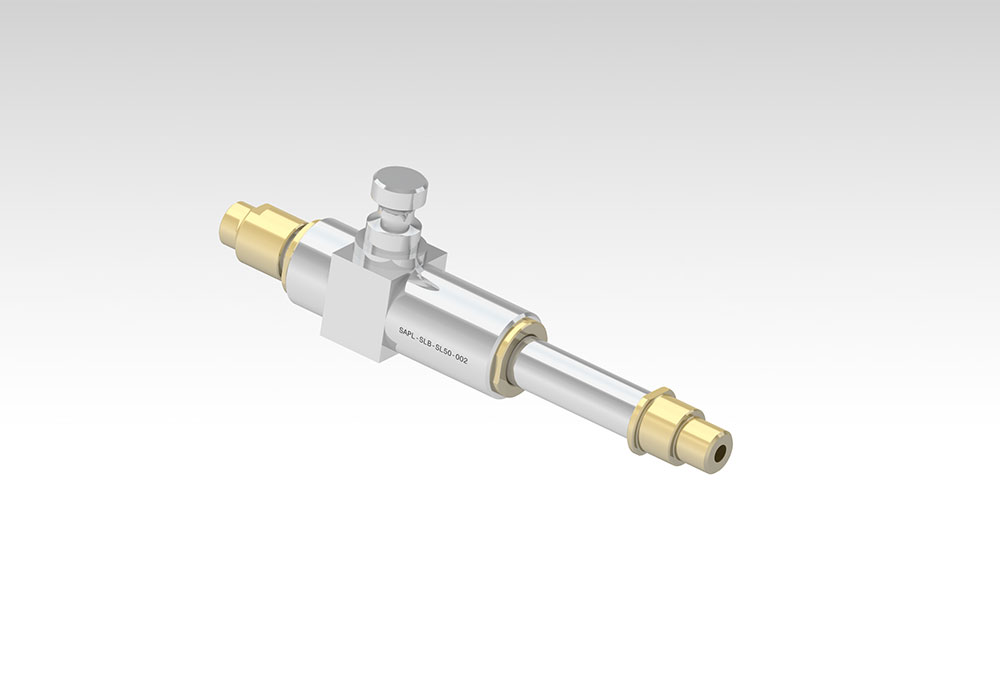

SPRING LOADED BRACKET Drawing 1

SPRING LOADED BRACKET Drawing 2

Part Name : SPRING LOADED BRACKET

Part No. : SAPL-SLB-SL50-002

Specification

Dimensions :	32X61X210 MM
Stroke Length :	50 MM
Body Material :	ALUMINUM (6061T6)
Cup & Pneumatic Attachments Material :	Brass
Part Weight :	0.34 Kg

SPRING LOADED BRACKET

SPRING LOADED BRACKET Drawing 1

SPRING LOADED BRACKET Drawing 2

Part Name : SPRING LOADED BRACKET

Part No. : SAPL-SLB-SL30-003

Specification

Dimensions :	48X80X85 MM
Stroke Length :	30 MM
Body Material :	ALUMINUM (6061T6)
Part Weight :	0.21 Kg

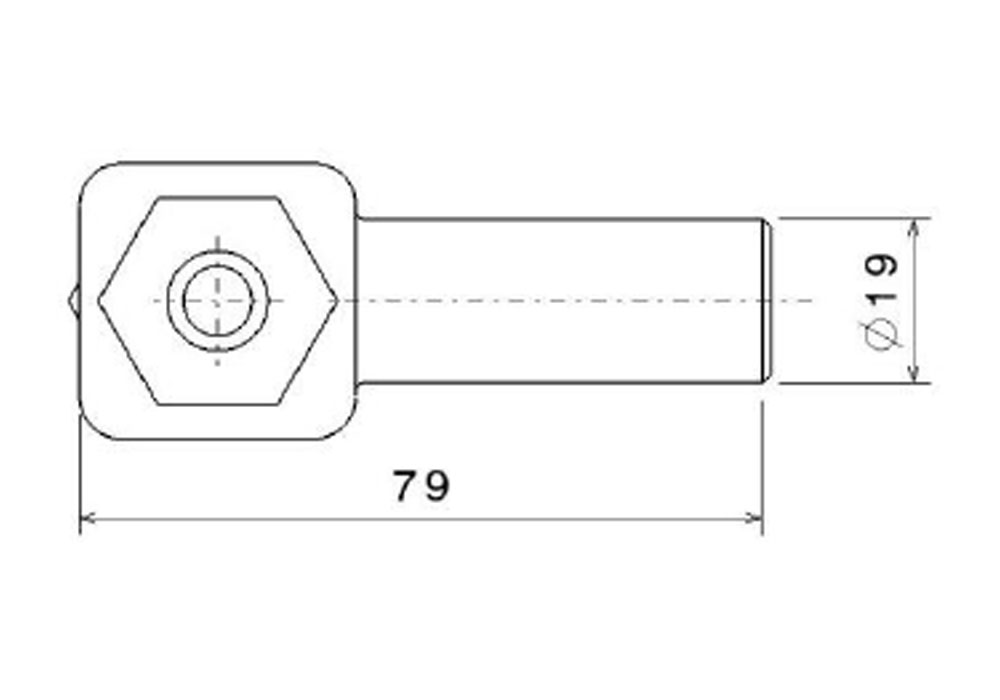

SPRING LOADED BRACKET

SPRING LOADED BRACKET Drawing 1

SPRING LOADED BRACKET Drawing 2

Part Name : SPRING LOADED BRACKET

Part No. : SAPL-SLB-SL30-004

Specification

Dimensions :	32X79X85 MM
Stroke Length :	30 MM
Body Material :	ALUMINUM (6061T6)
Part Weight :	0.18 Kg

SPRING LOADED BRACKET

SPRING LOADED BRACKET Drawing 1

SPRING LOADED BRACKET Drawing 2

Part Name : SPRING LOADED BRACKET

Part No. : SAPL-SLB-SL50-005

Specification

Dimensions :	30X65X139 MM
Stroke Length :	50 MM
Body Material :	SS304 & ALUMINUM (6061T6)
Part Weight :	0.22 Kg

SPRING LOADED BRACKET

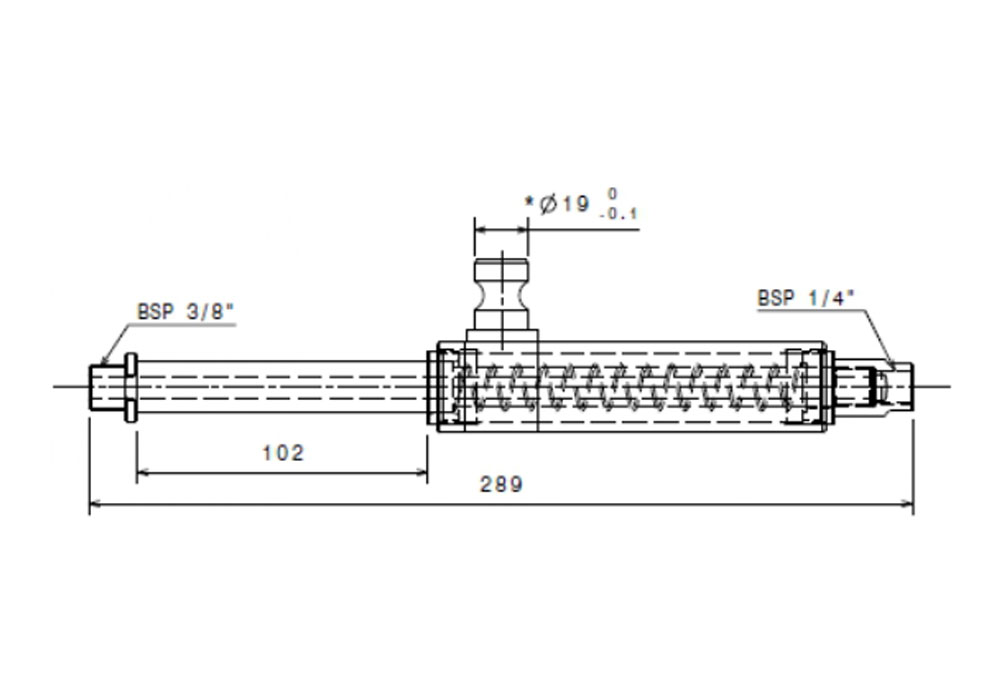

SPRING LOADED BRACKET Drawing 1

SPRING LOADED BRACKET Drawing 2

Part Name : SPRING LOADED BRACKET

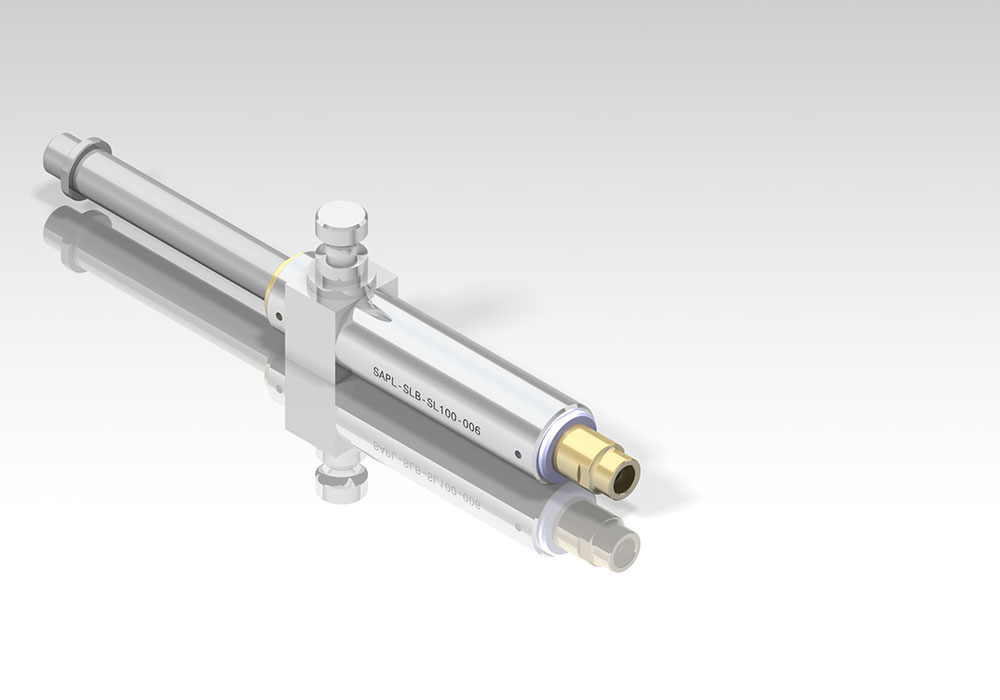

Part No. : SAPL-SLB-SL100-006

Specification

Dimensions :	32X61X289 MM
Stroke Length :	100 MM
Body Material :	SS304, BRASS & ALUMINUM (6061T6)
Part Weight :	0.75 Kg

SPRING LOADED BRACKET

SPRING LOADED BRACKET Drawing 1

SPRING LOADED BRACKET Drawing 2

Part Name : SPRING LOADED BRACKET

Part No. : SAPL-SLB-SL100-007

Specification

Dimensions :	30X65X195 MM
Stroke Length :	100 MM
Body Material :	SS304, BRASS & ALUMINUM (6061T6)
Part Weight :	0.27 Kg

SPRING LOADED BRACKET

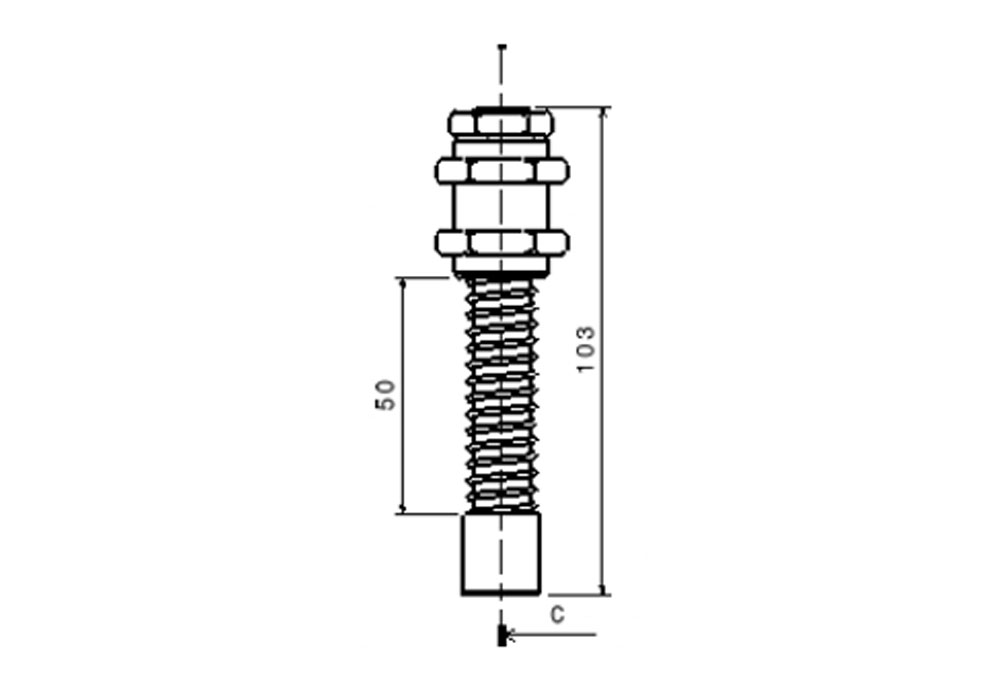

SPRING LOADED BRACKET Drawing 1

SPRING LOADED BRACKET Drawing 2

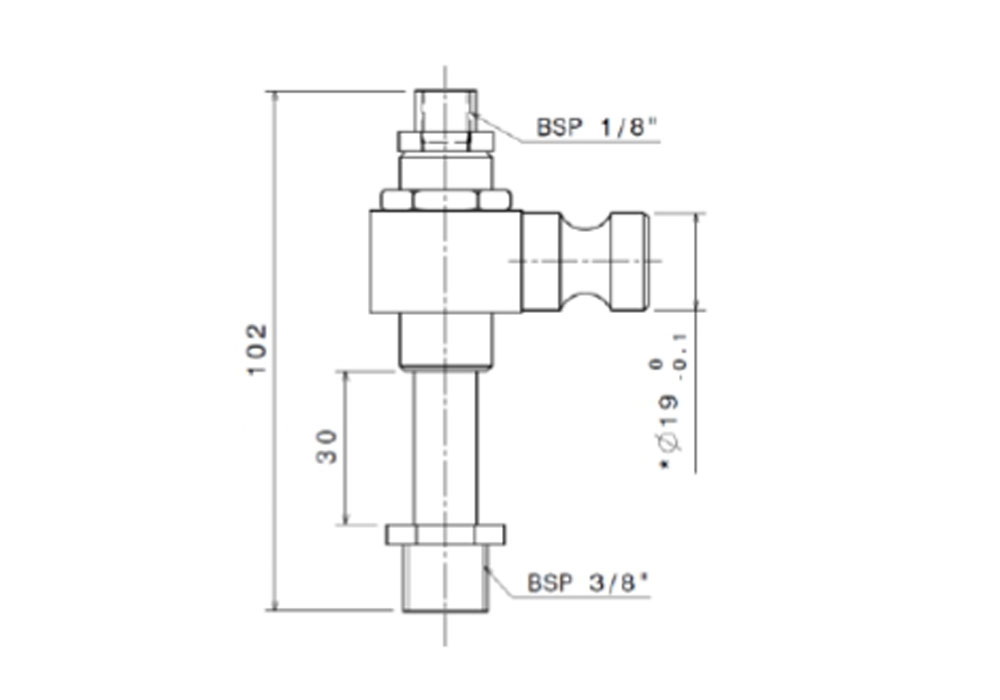

Part Name : SPRING LOADED BRACKET

Part No. : SAPL-SLB-SL30-009

Specification

Dimensions :	30X55X102 MM
Stroke Length :	30 MM
Body Material :	SS304 & ALUMINUM (6061T6)
Part Weight :	0.24 Kg

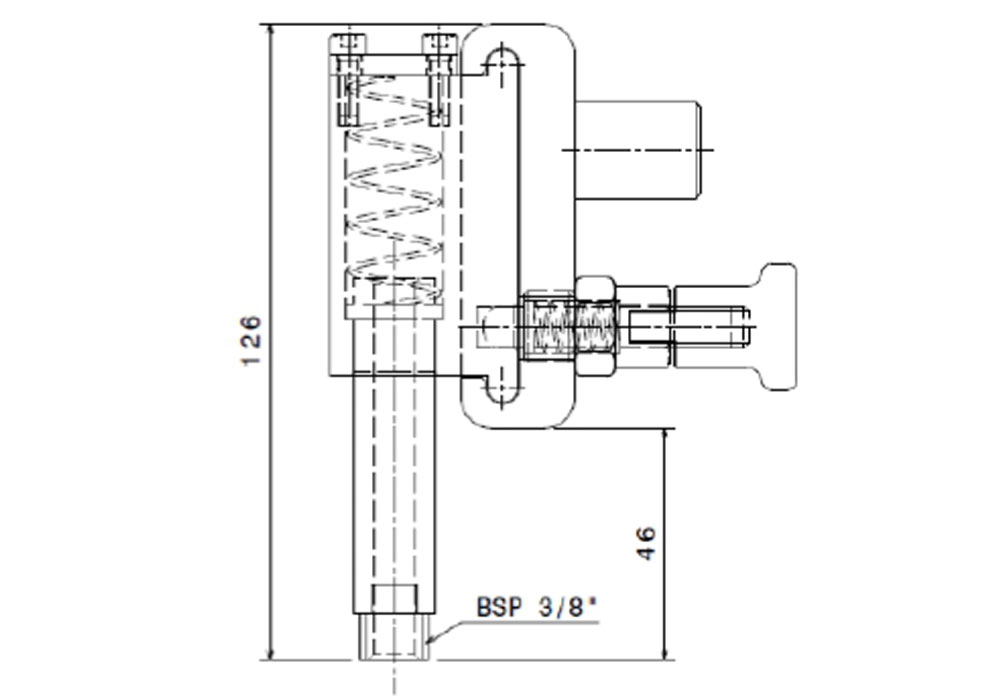

SPRING LOADED FOR MAGNETIC GRIPPERS

SPRING LOADED FOR MAGNETIC GRIPPERS Drawing 1

SPRING LOADED FOR MAGNETIC GRIPPERS Drawing 2

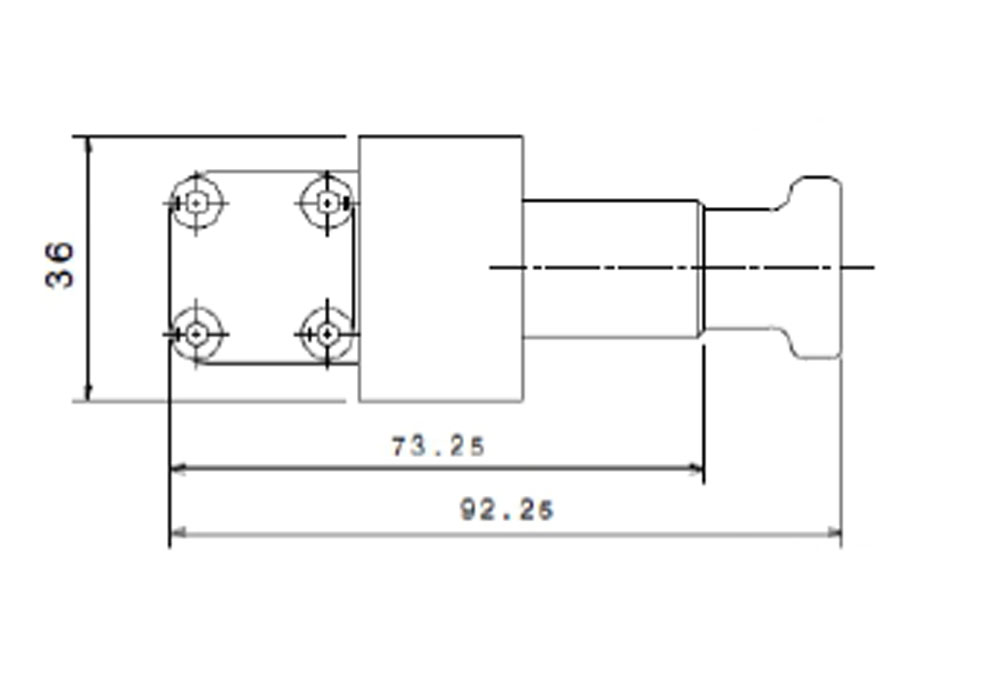

Part Name : SPRING LOADED FOR MAGNETIC GRIPPERS

Part No. : SAPL-SLB-SL30-010

Specification

Dimensions :	36X92X126 MM
Stroke Length :	30 MM
Body Material :	SS304 & ALUMINUM (6061T6)
Part Weight :	0.4 Kg

LINEAR MOTION SPRING LOADED

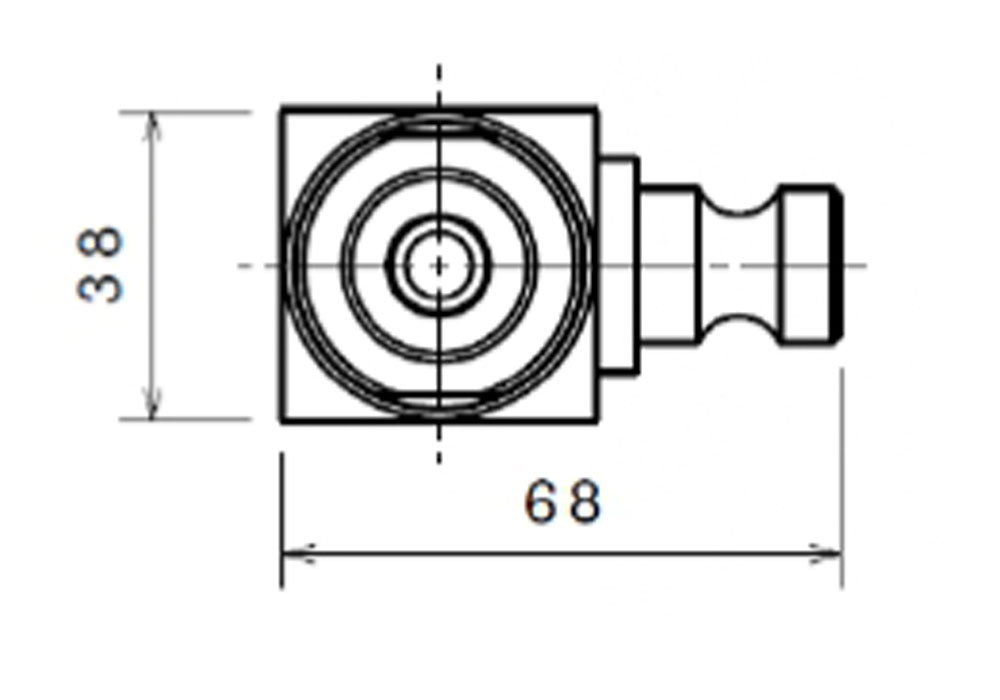

LINEAR MOTION SPRING LOADED Drawing 1

LINEAR MOTION SPRING LOADED Drawing 2

Part Name : LINEAR MOTION SPRING LOADED

Part No. : SAPL-SLB-SL100-012

Specification

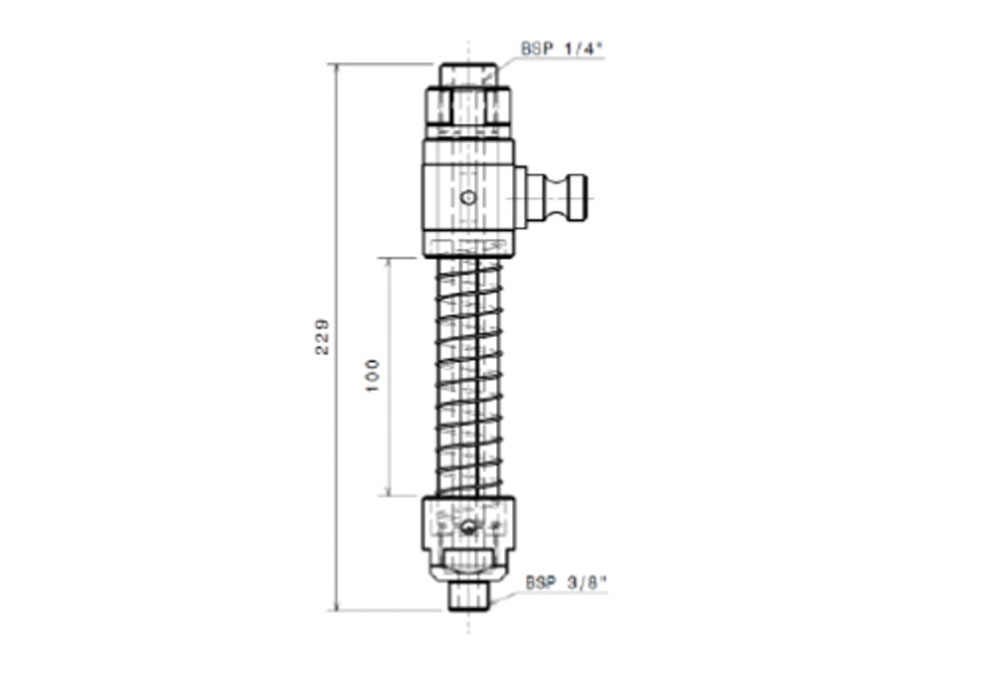

Dimensions :	38X68X229 MM
Stroke Length :	100 MM
Body Material :	SS304, BRASS & ALUMINUM (6061T6)
Part Weight :	0.57 Kg

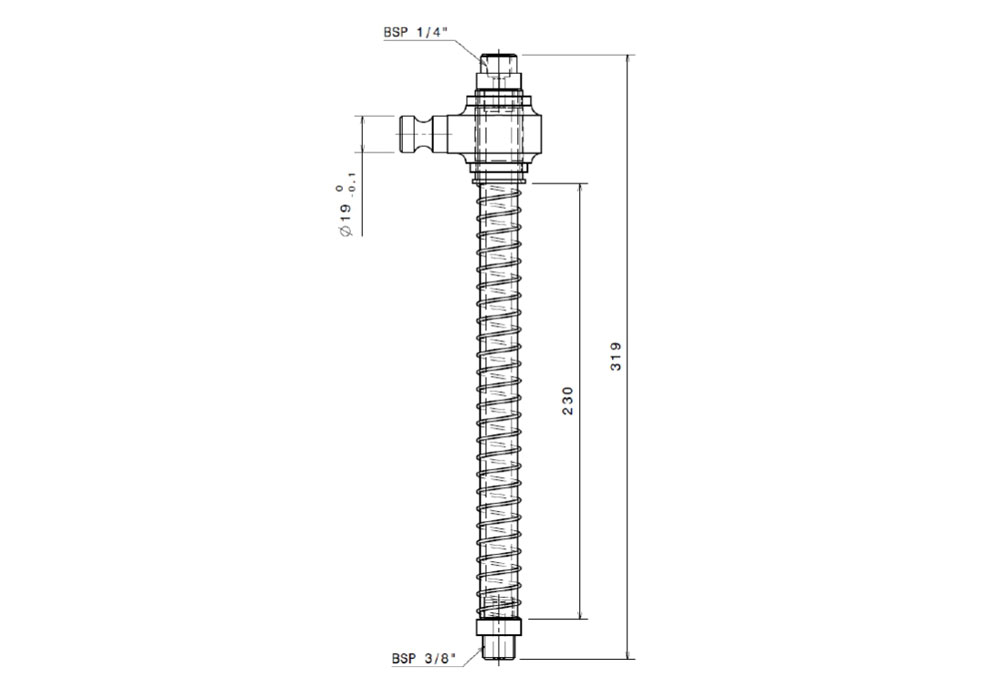

SPRING LOADED BRACKET

SPRING LOADED BRACKET Drawing 1

SPRING LOADED BRACKET Drawing 2

Part Name : SPRING LOADED BRACKET

Part No. : SAPL-SLB-SL200-015

Specification

Dimensions :	44X75X319 MM
Stroke Length :	200 MM
Body Material :	SS304, BRASS & ALUMINUM (6061T6)
Part Weight :	0.65 Kg

SPRING LOADED BRACKET

SPRING LOADED BRACKET Drawing 1

SPRING LOADED BRACKET Drawing 2

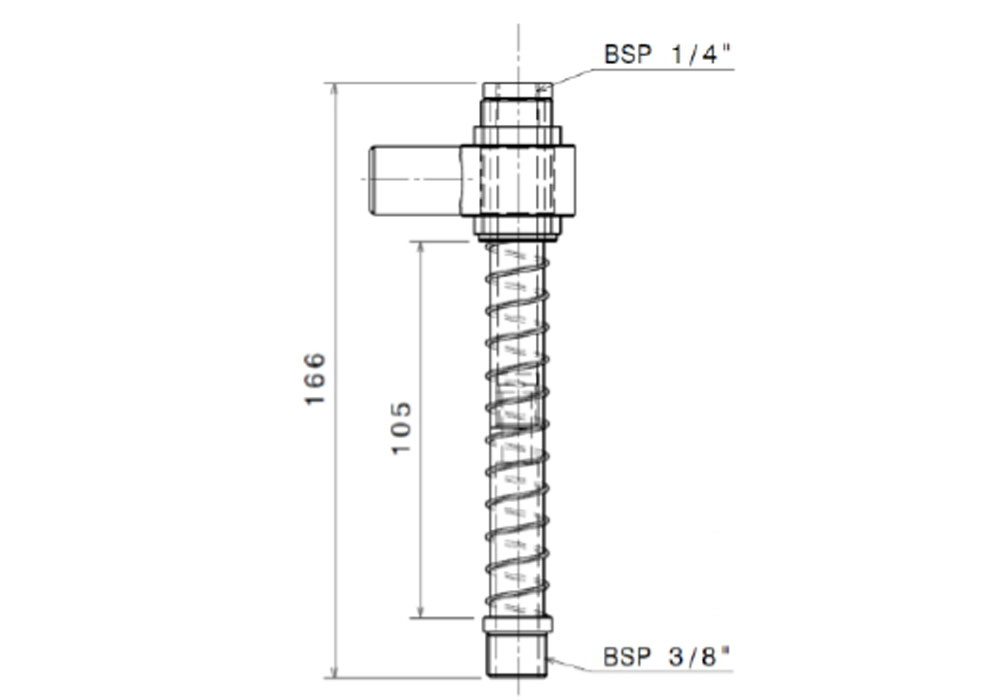

Part Name : SPRING LOADED BRACKET

Part No. : SAPL-SLB-SL100-016

Specification

Dimensions :	32X57X166 MM
Stroke Length :	100 MM
Body Material :	SS304, BRASS & ALUMINUM (6061T6)
Part Weight :	0.65 Kg

SPRING LOADED BRACKET

SPRING LOADED BRACKET Drawing 1

SPRING LOADED BRACKET Drawing 2

Part Name : SPRING LOADED BRACKET

Part No. : SAPL-SLB-SL50-017

Specification

Dimensions :	35X45X119 MM
Stroke Length :	50 MM
Body Material :	SS304, BRASS & ALUMINUM (6061T6)
Part Weight :

SPRING LOADED BRACKET

SPRING LOADED BRACKET Drawing 1

SPRING LOADED BRACKET Drawing 2

Part Name : SPRING LOADED BRACKET

Part No. : SAPL-SLB-SL130-008

Specification

Dimensions :	221X65X30 MM
Stroke Length :	150 MM
Body Material :	SS304, BRASS & ALUMINUM (6061T6)
Part Weight :	0.289 Kg

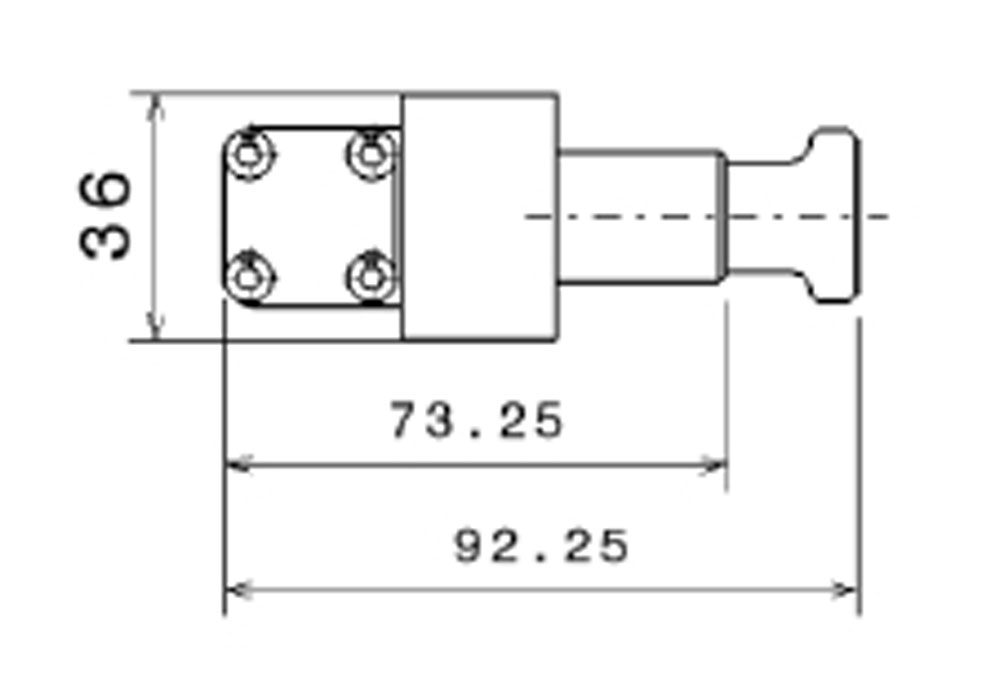

SPRING LOADED BRACKET

SPRING LOADED BRACKET Drawing 1

SPRING LOADED BRACKET Drawing 2

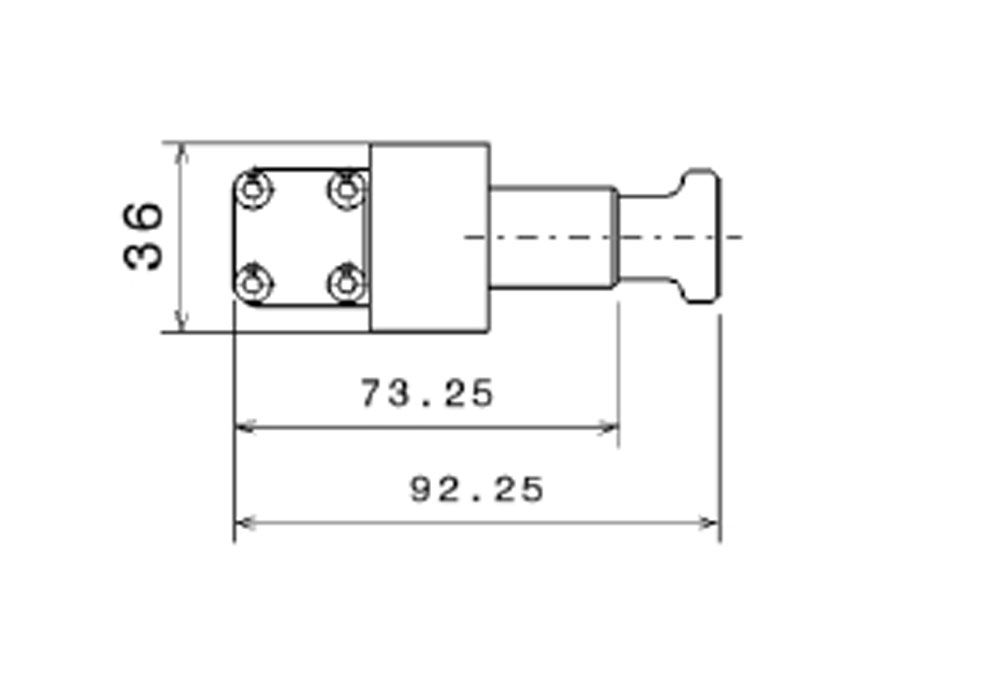

Part Name : SPRING LOADED BRACKET

Part No. : SAPL-SLB-SL80-011

Specification

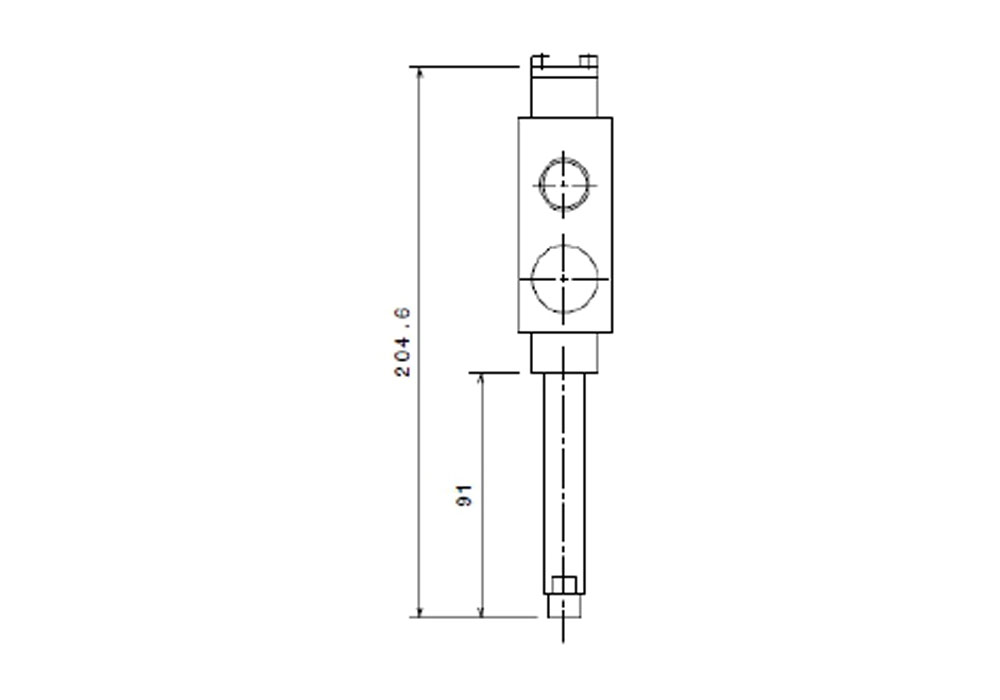

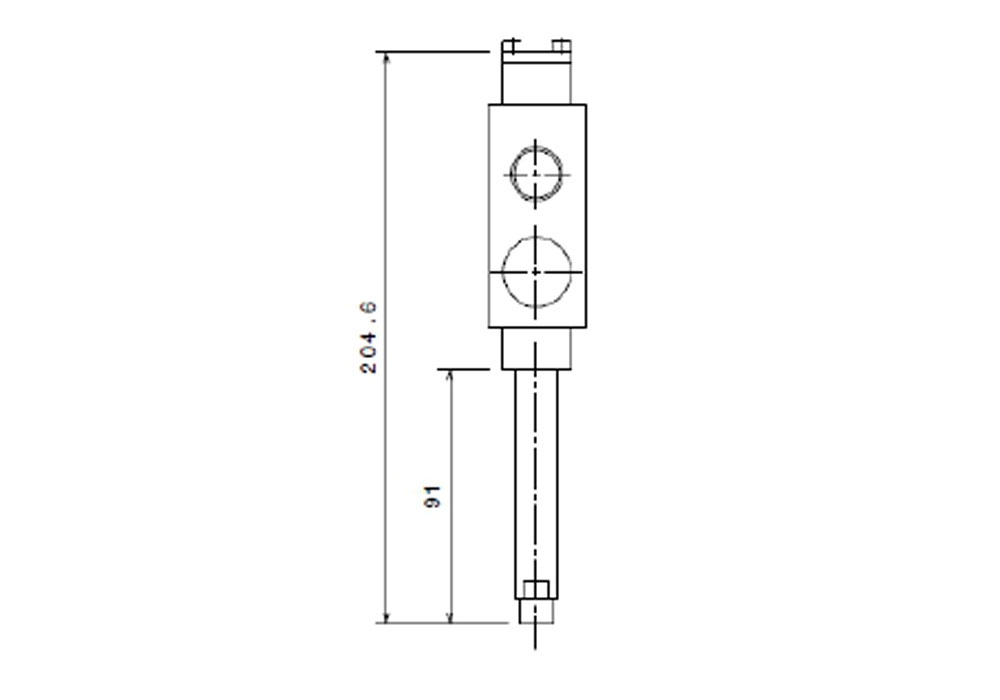

Dimensions :	204.6X92.25X36 MM
Stroke Length :	80 MM
Body Material :	SS304, BRASS & ALUMINUM (6061T6)
Part Weight :	0.445 Kg

SPRING LOADED BRACKET

SPRING LOADED BRACKET Drawing 1

SPRING LOADED BRACKET Drawing 2

Part Name : SPRING LOADED BRACKET

Part No. : SAPL-SLB-SL100-014

Specification

Dimensions :	322X40X70 MM
Stroke Length :	100 MM
Body Material :	SS304, BRASS & ALUMINUM (6061T6)
Part Weight :	0.594 Kg

SPRING LOADED BRACKET

SPRING LOADED BRACKET Drawing 1

SPRING LOADED BRACKET Drawing 2

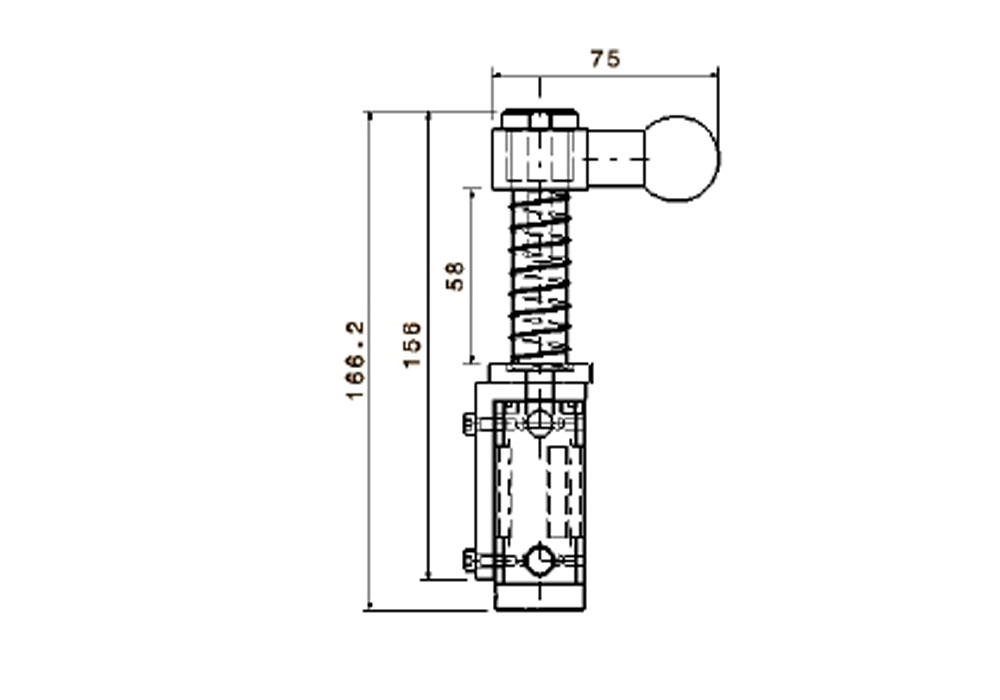

Part Name : SPRING LOADED BRACKET

Part No. : SAPL-SLB-SL50-018

Specification

Dimensions :	166.2X75X32 MM
Stroke Length :	50 MM
Body Material :	SS304, BRASS & ALUMINUM (6061T6)
Part Weight :	0.317 Kg

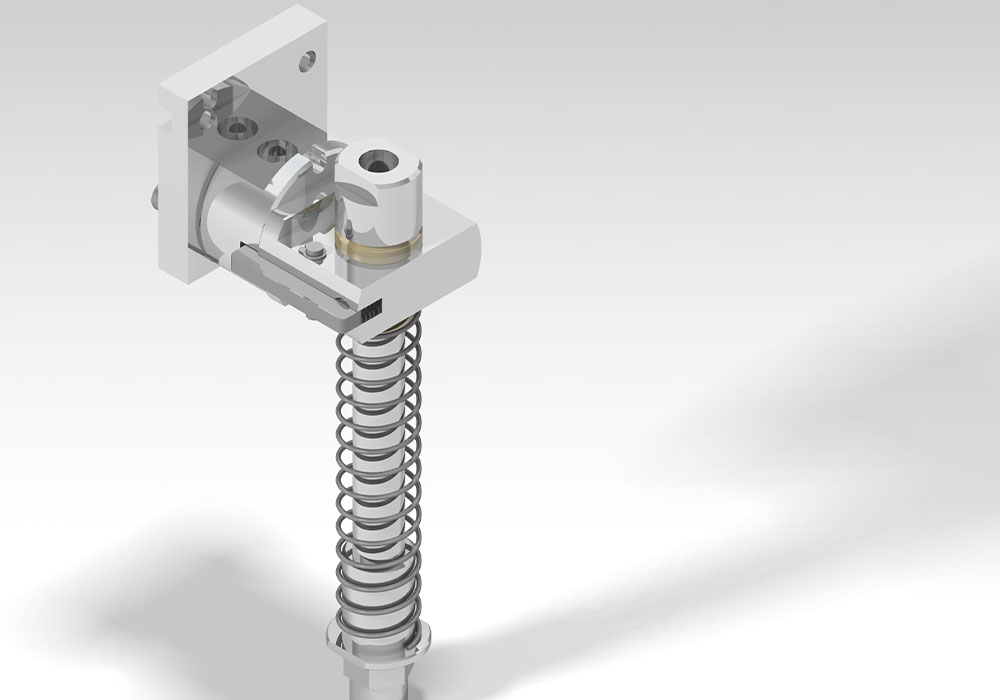

SPRING LOADED BRACKET

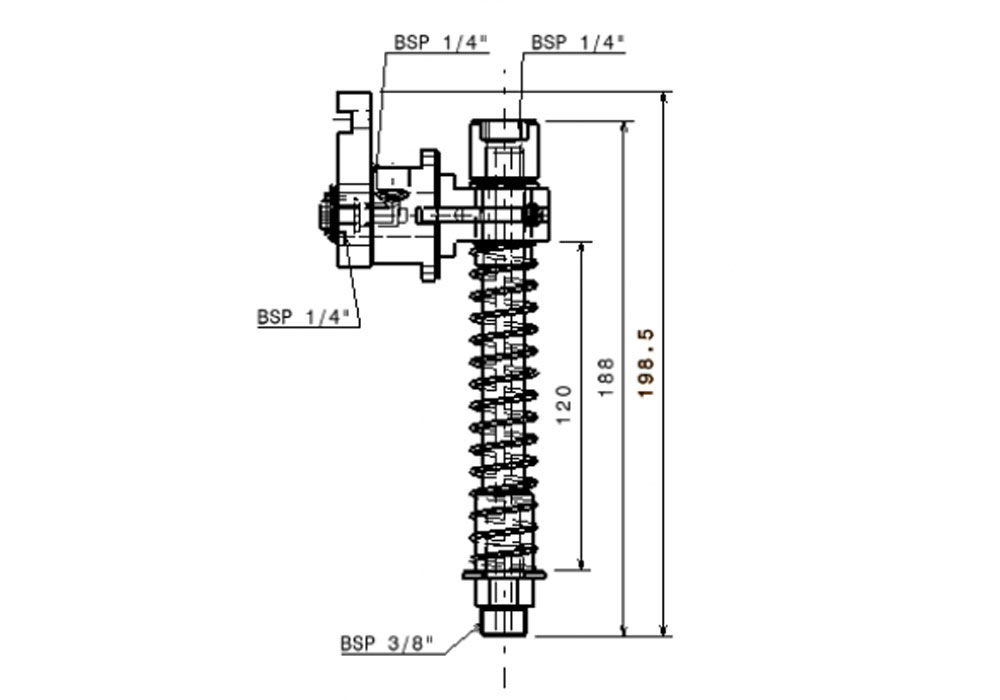

SPRING LOADED BRACKET Drawing 1

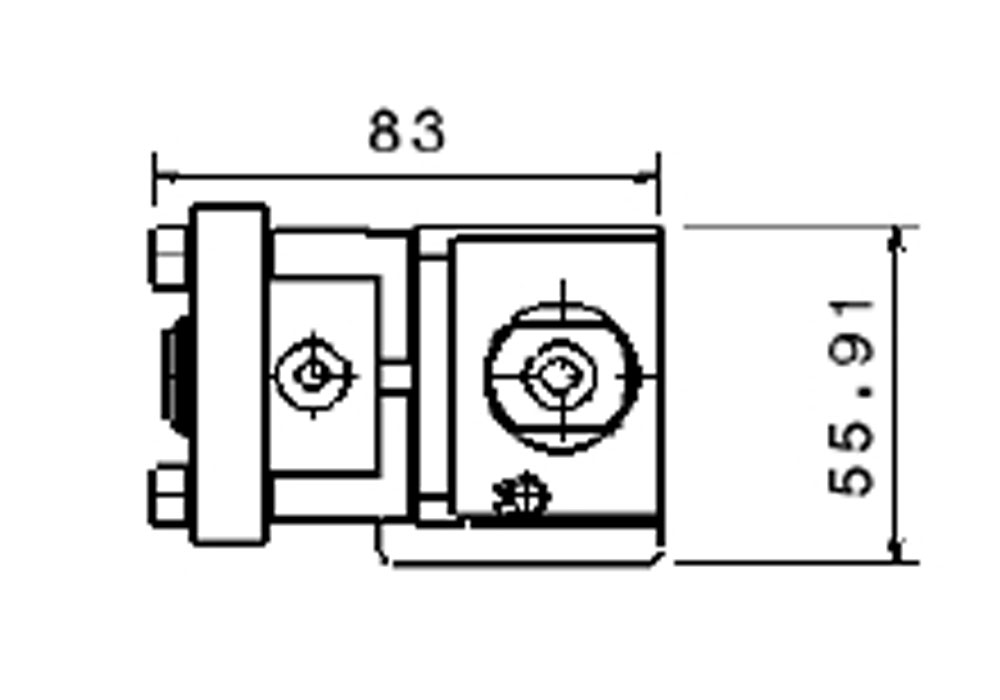

SPRING LOADED BRACKET Drawing 2

Part Name : SPRING LOADED BRACKET

Part No. : SAPL-SLB-SL80-019

Specification

Dimensions :	198.5X55.91X83 MM
Stroke Length :	80 MM
Body Material :	SS304, BRASS & ALUMINUM (6061T6)
Part Weight :	0.49 Kg

SPRING LOADED BRACKET

SPRING LOADED BRACKET Drawing 1

SPRING LOADED BRACKET Drawing 2

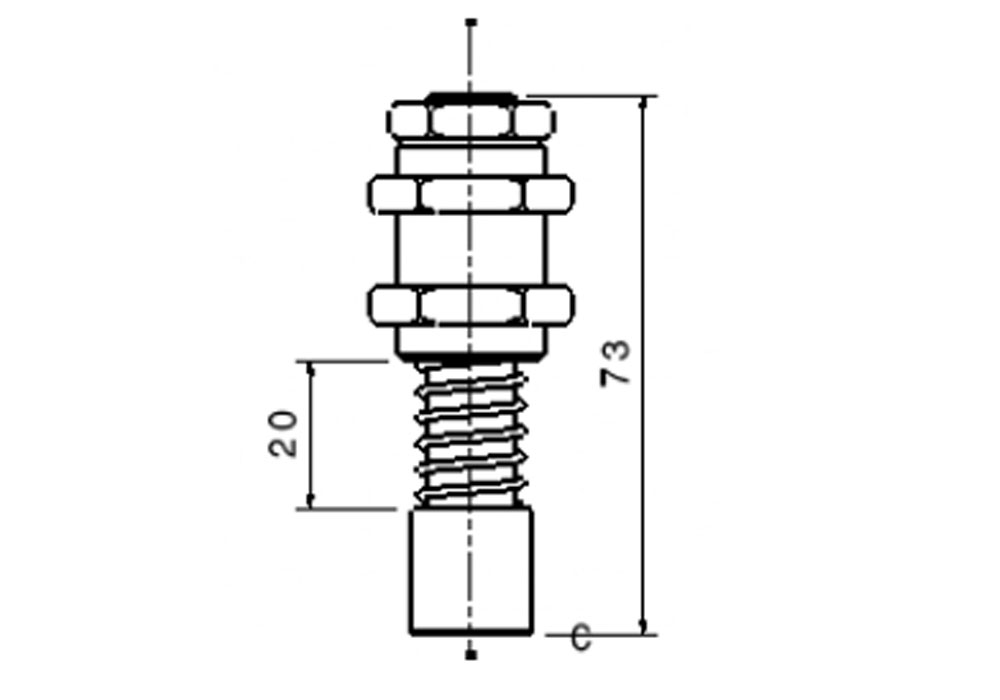

Part Name : SPRING LOADED BRACKET

Part No. : SAPL-SLB-SL20-021

Specification

Dimensions :	73X24X28 MM
Stroke Length :	20 MM
Body Material :	SS304, BRASS & ALUMINUM (6061T6)
Part Weight :	0.123 Kg

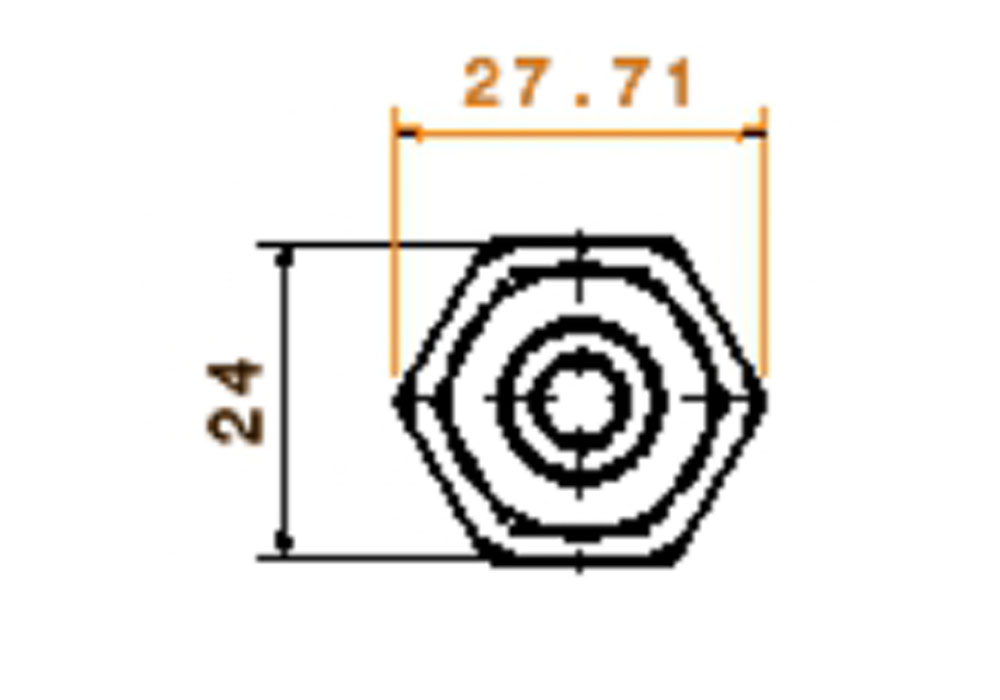

SPRING LOADED BRACKET

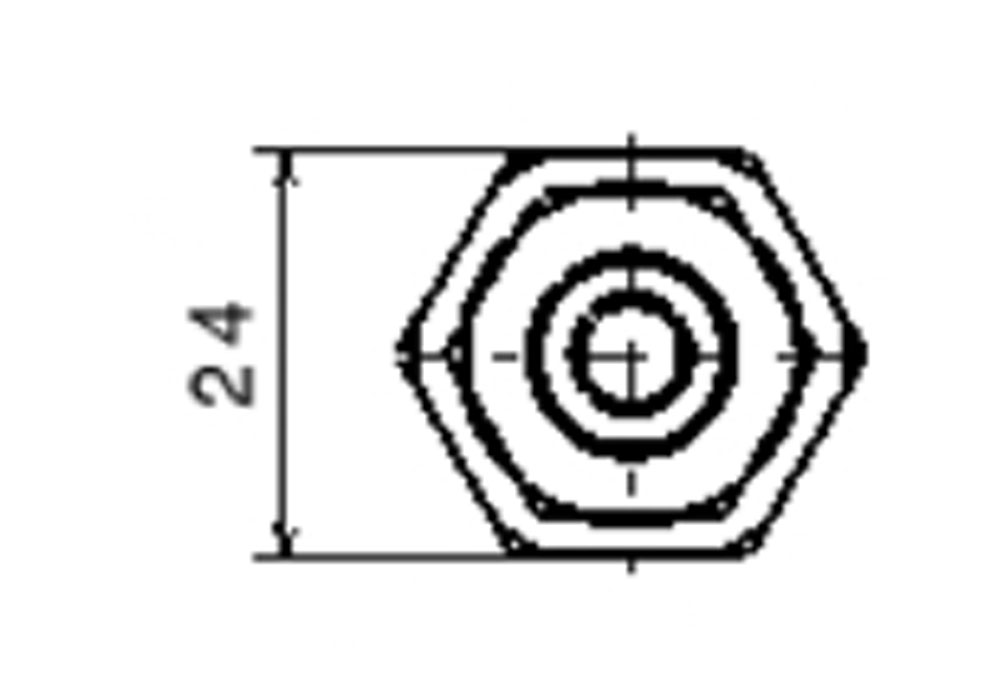

SPRING LOADED BRACKET Drawing 1

SPRING LOADED BRACKET Drawing 2

Part Name : SPRING LOADED BRACKET

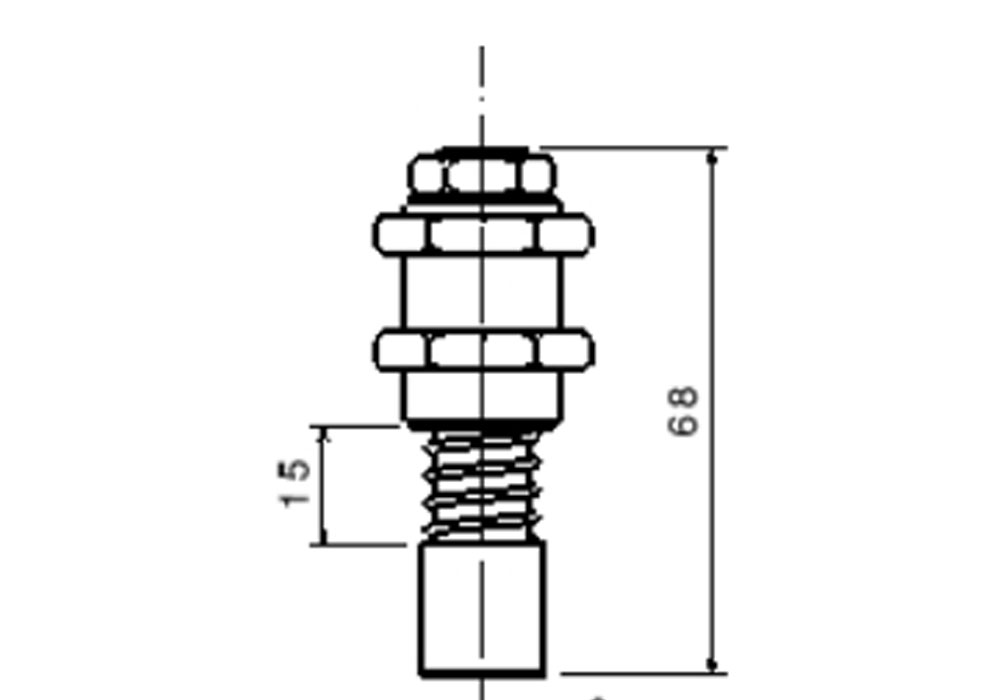

Part No. : SAPL-SLB-SL15-020

Specification

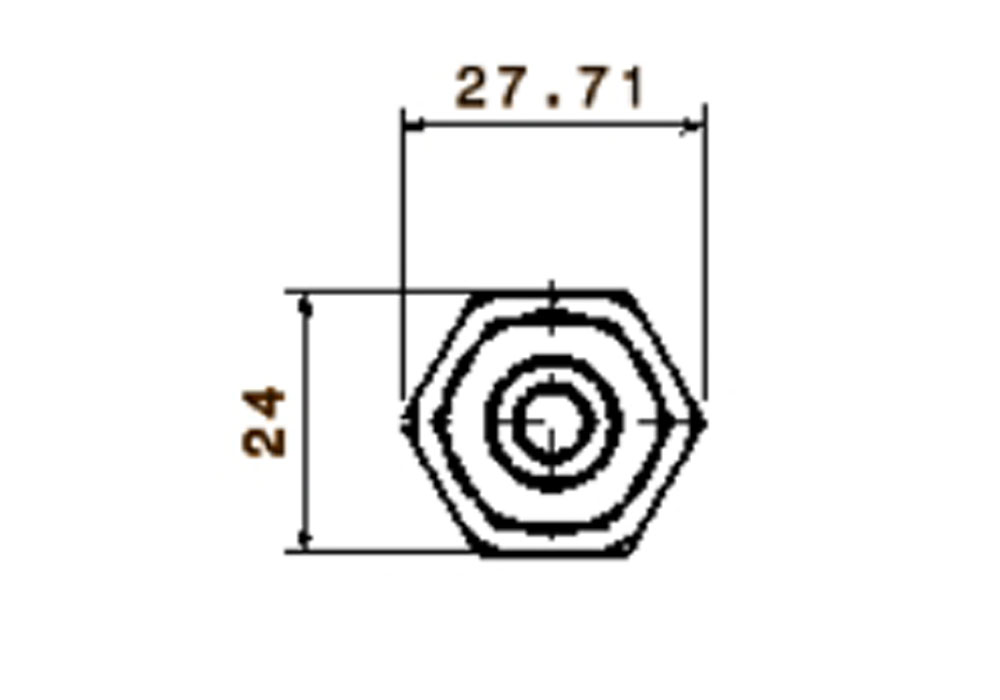

Dimensions :	68X24X27.71 MM
Stroke Length :	15 MM
Body Material :	SS304, BRASS & ALUMINUM (6061T6)
Part Weight :	0.116 Kg

SPRING LOADED BRACKET

SPRING LOADED BRACKET Drawing 1

SPRING LOADED BRACKET Drawing 2

Part Name : SPRING LOADED BRACKET

Part No. : SAPL-SLB-SL30-022

Specification

Dimensions :	68X24X27.71 MM
Stroke Length :	30 MM
Body Material :	SS304, BRASS & ALUMINUM (6061T6)
Part Weight :	0.131 Kg

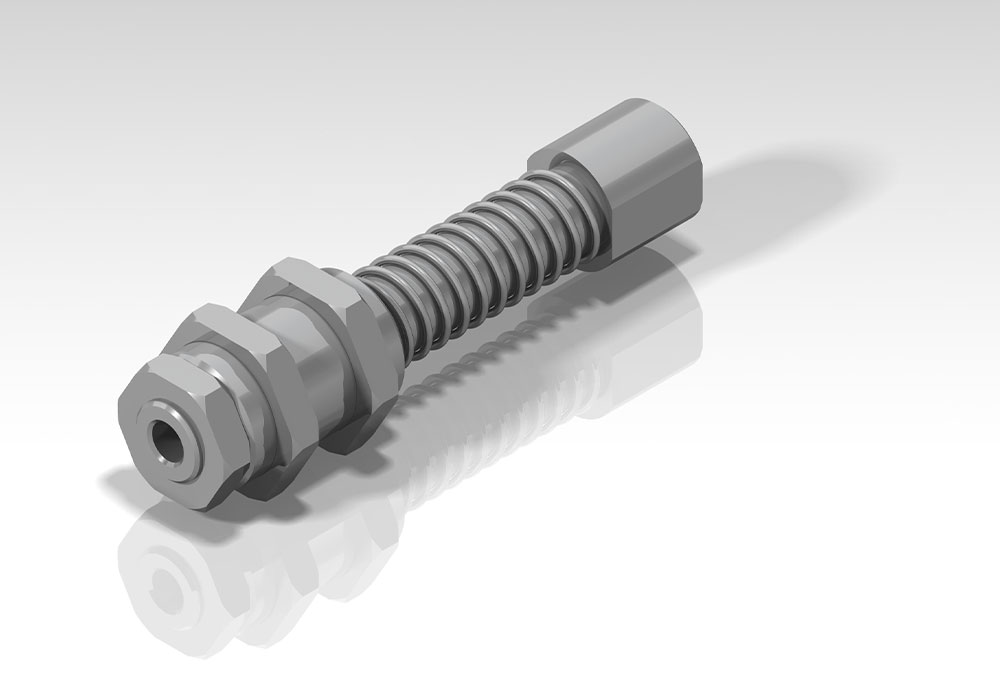

SPRING LOADED BRACKET

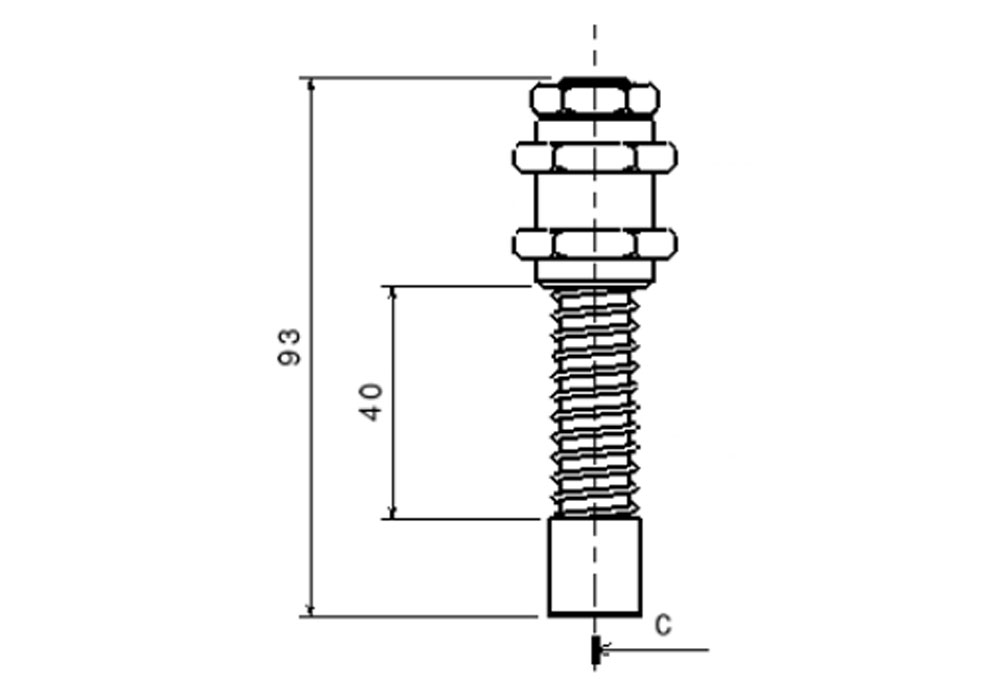

SPRING LOADED BRACKET Drawing 1

SPRING LOADED BRACKET Drawing 2

Part Name : SPRING LOADED BRACKET

Part No. : SAPL-SLB-SL40-023

Specification

Dimensions :	93X24X27.71 MM
Stroke Length :	40 MM
Body Material :	SS304, BRASS & ALUMINUM (6061T6)
Part Weight :	0.139 Kg

SPRING LOADED BRACKET

SPRING LOADED BRACKET Drawing 1

SPRING LOADED BRACKET Drawing 2

Part Name : SPRING LOADED BRACKET

Part No. : SAPL-SLB-SL50-024

Specification

Dimensions :	103X24X27.71 MM
Stroke Length :	50 MM
Body Material :	SS304, BRASS & ALUMINUM (6061T6)
Part Weight :	0.147 Kg

SPRING LOADED BRACKET

SPRING LOADED BRACKET Drawing 1

SPRING LOADED BRACKET Drawing 2

Part Name : SPRING LOADED BRACKET

Part No. : SAPL-SLB-SL70-025

Specification

Dimensions :	123X24X27.71 MM
Stroke Length :	70 MM
Body Material :	SS304, BRASS & ALUMINUM (6061T6)
Part Weight :	0.159 Kg

SPRING LOADED BRACKET

SPRING LOADED BRACKET Drawing 1

SPRING LOADED BRACKET Drawing 2

Part Name : SPRING LOADED BRACKET

Part No. : SAPL-SLB-SL50-026

Specification

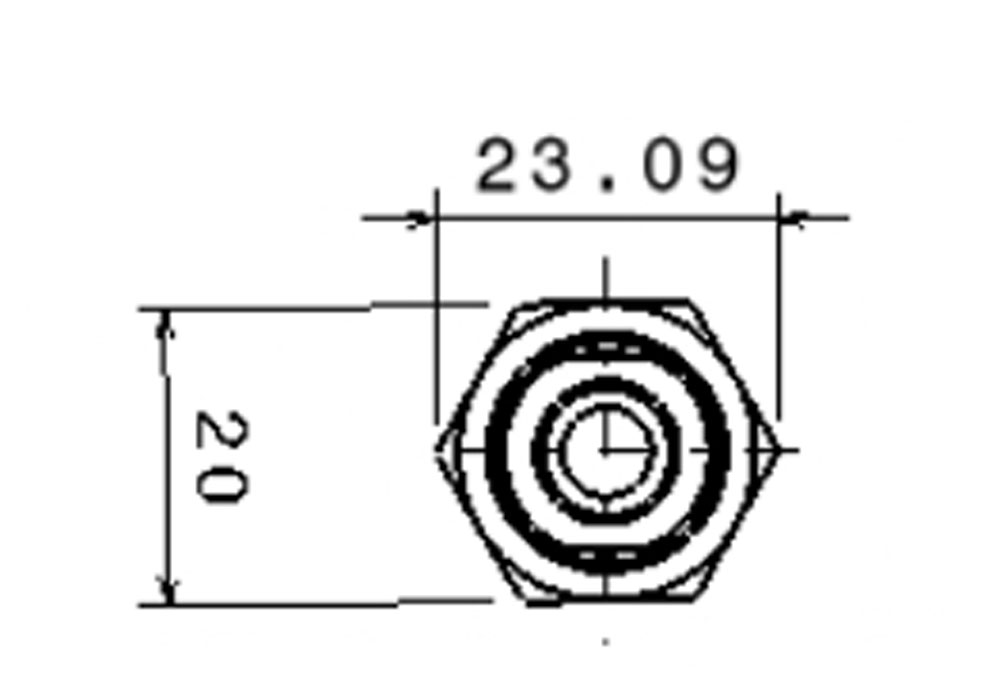

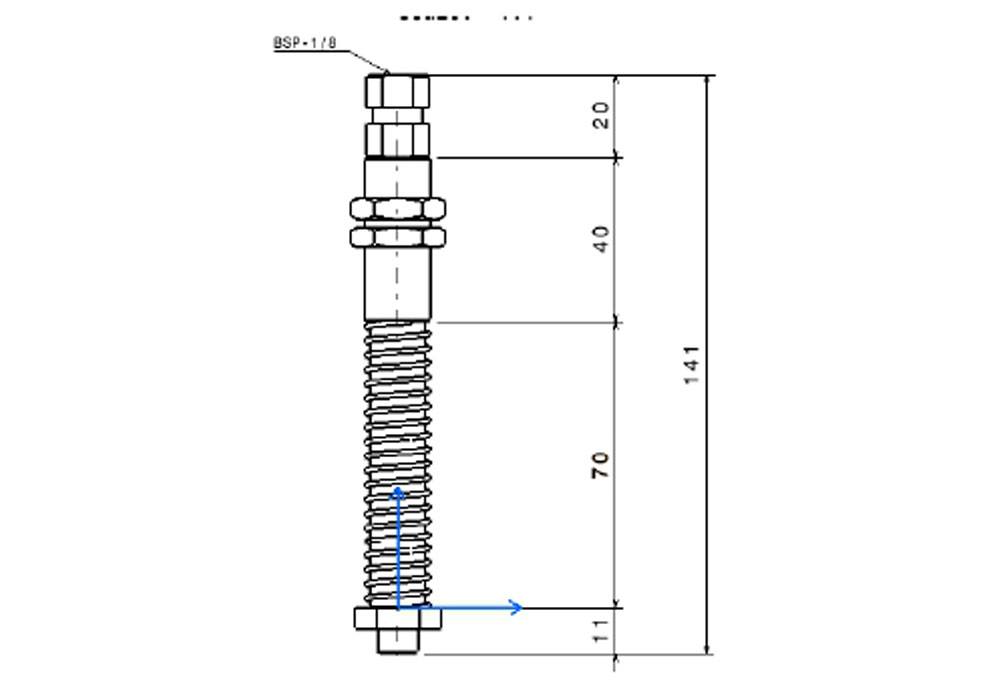

Dimensions :	141X20X23.09 MM
Stroke Length :	50 MM
Body Material :	SS304, BRASS & ALUMINUM (6061T6)
Part Weight :	0.162 Kg

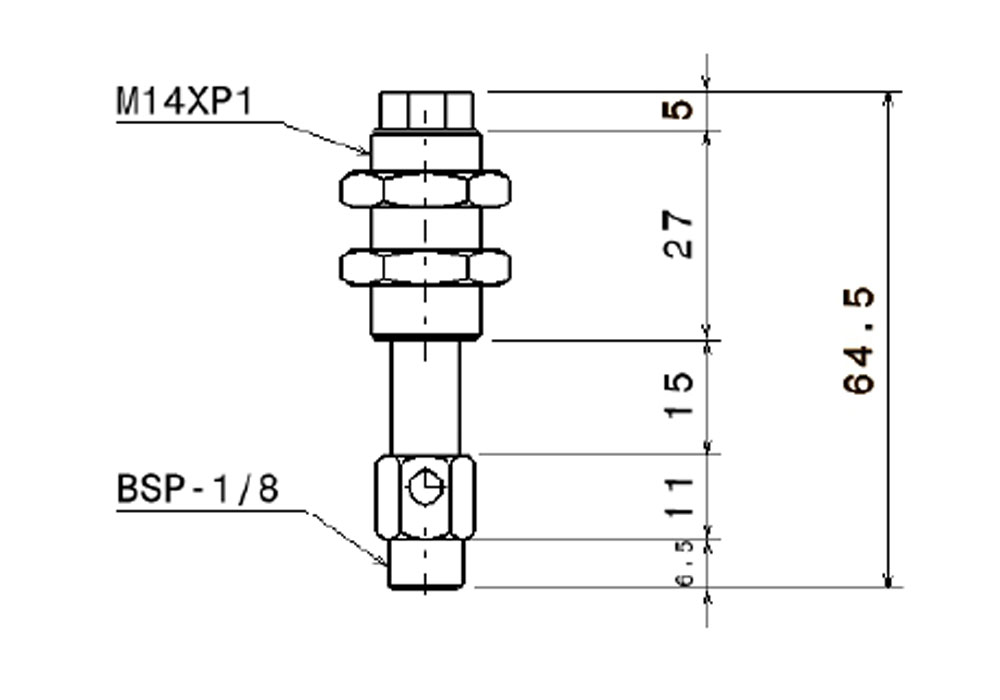

SPRING LOADED BRACKET

SPRING LOADED BRACKET Drawing 1

SPRING LOADED BRACKET Drawing 2

Part Name : SPRING LOADED BRACKET

Part No. : SAPL-SLB-SL15-027

Specification

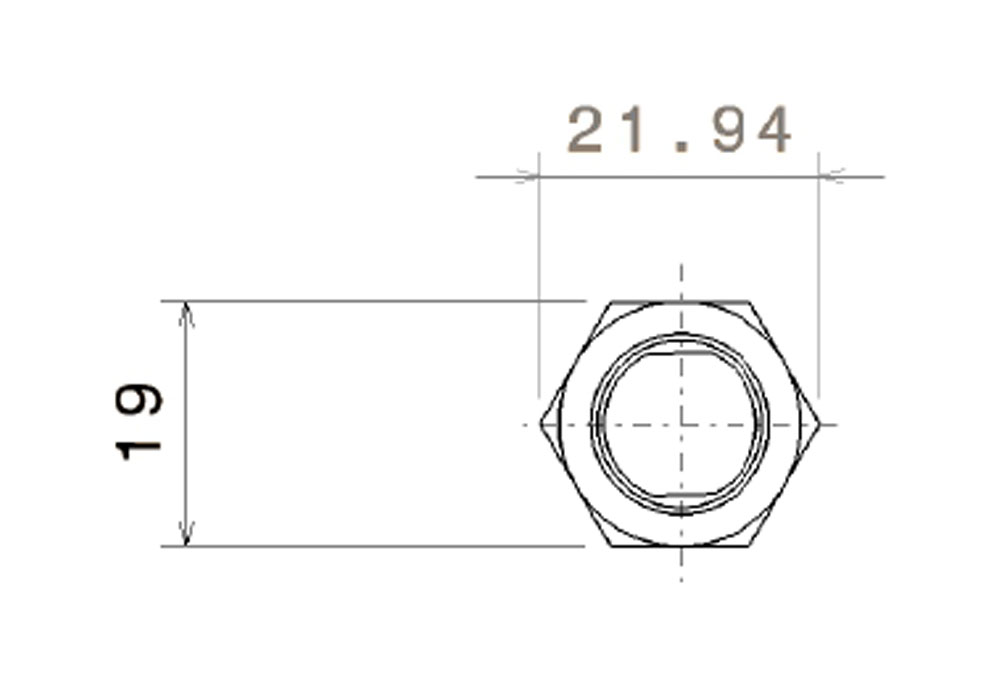

Dimensions :	64.5X19X21.94 MM
Stroke Length :	15 MM
Body Material :	SS304, BRASS & ALUMINUM (6061T6)
Part Weight :	0.064 Kg

SPRING LOADED BRACKET-M16-042

SPRING LOADED BRACKET-M16-042 Drawing 1

SPRING LOADED BRACKET-M16-042 Drawing 2

Part Name : SPRING LOADED BRACKET-M16-042

Part No. : SAPL-SLB-M16-042

Specification

Dimensions :	71X30 MM
Stroke Length :	SS 304
Part Weight :	0.05 Kg

SPRING LOADED BRACKET-SL100-031

SPRING LOADED BRACKET-SL100-031 Drawing 1

SPRING LOADED BRACKET-SL100-031 Drawing 2

Part Name : SPRING LOADED BRACKET-SL100-031

Part No. : SAPL-SLB-SL100-031

Specification

Dimensions :	342X72X32 MM
Material :	ALUMINIUM
Stroke Length :	100 MM
Part Weight :	0.62 Kg

SPRING LOADED BRACKET-SL100-034

SPRING LOADED BRACKET-SL100-034 Drawing 1

SPRING LOADED BRACKET-SL100-034 Drawing 2

Part Name : SPRING LOADED BRACKET-SL100-034

Part No. : SAPL-SLB-SL100-034

Specification

Dimensions :	306X61X32 MM
Material :	ALUMINIUM
Stroke Length :	100 MM
Part Weight :	0.506 Kg

SPRING LOADED BRACKET-SL200-029

SPRING LOADED BRACKET-SL200-029 Drawing 1

SPRING LOADED BRACKET-SL200-029 Drawing 2

Part Name : SPRING LOADED BRACKET-SL200-029

Part No. : SAPL-SLB-SL200-029

Specification

Dimensions :	329X40X75 MM
Material :	SS
Stroke Length :	200 MM
Part Weight :	0.696 Kg

SPRING LOADED BRACKET-SL25-038

SPRING LOADED BRACKET-SL25-038 Drawing 1

SPRING LOADED BRACKET-SL25-038 Drawing 2

Part Name : SPRING LOADED BRACKET-038

Part No. : SAPL-SLB-SL25-038

Specification

Dimensions :	104X60X32 MM
Material :	ALUMINIUM
Stroke Length :	25 MM
Part Weight :	0.052 Kg

SPRING LOADED BRACKET-SL70-038A

SPRING LOADED BRACKET-SL70-038A Drawing 1

SPRING LOADED BRACKET-SL70-038A Drawing 2

Part Name : SPRING LOADED BRACKET

Part No. : SAPL-SLB-SL70-038A

Specification

Dimensions :	199X60X32 MM
Material :	ALUMINIUM
Stroke Length :	70 MM
Part Weight :	0.239 Kg

SPRING LOADED BRACKET-SL100-030

SPRING LOADED BRACKET-SL100-030 Drawing 1

SPRING LOADED BRACKET-SL100-030 Drawing 2

Part Name : SPRING LOADED BRACKET-SL100-030

Part No. : SAPL-SLB-SL100-030

Specification

Dimensions :	212X22X26 MM
Material :	SS
Stroke Length :	100 MM
Part Weight :	0.248 Kg

SPRING LOADED BRACKET-SL200-028

SPRING LOADED BRACKET-SL200-028 Drawing 1

SPRING LOADED BRACKET-SL200-028 Drawing 2

Part Name : SPRING LOADED BRACKET-SL200-028

Part No. : SAPL-SLB-SL200-028

Specification

Dimensions :	276X24X28 MM
Material :	SS
Stroke Length :	200 MM
Part Weight :	0.291 Kg

Vacuum Automation

Vacuum Automation For Robotic Press Shops

Vacuum Automation For Robot Eoat

Robotic Tooling

Vacuum Gripper For Press Shop

Vacuum Gripper For Stamping

Vacuum Gripper For Hot Forming Press Shop

Vacuum Automation For Transfer Press Lines

Vacuum Automation For Pick & Place Applications

Vacuum Technology For Robotic Press Shops

Highly Precised Machining Components

Delivering high-performance Robotic Gripper Tooling (EOAT), Vacuum Automation Systems, and Precision CNC/VMC Machined Components to industries worldwide.

Our Products:

Housing / Quick Change Adapter
(OTB) One Touch Boss / Male Connector
Cross Connectors
Cup Mounting Bracket / Cup Attachments

-

U Connector

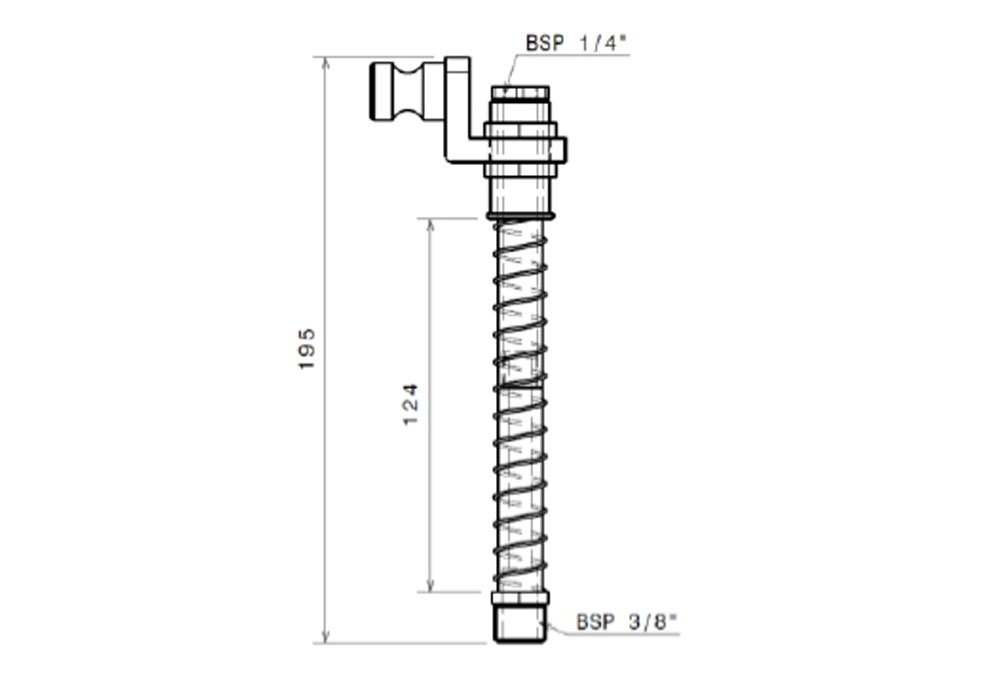

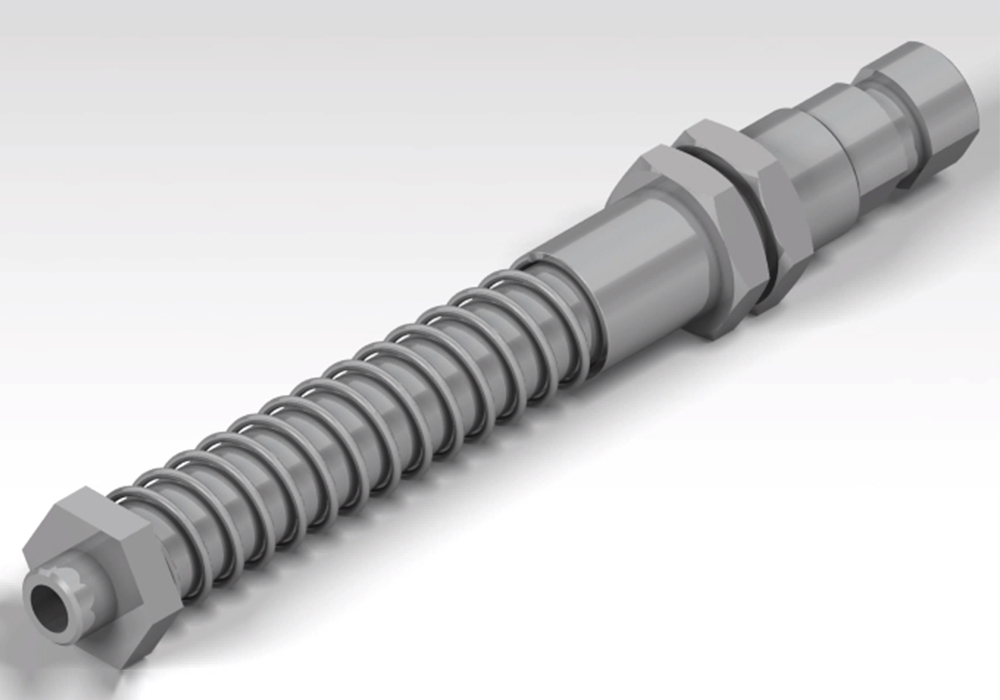

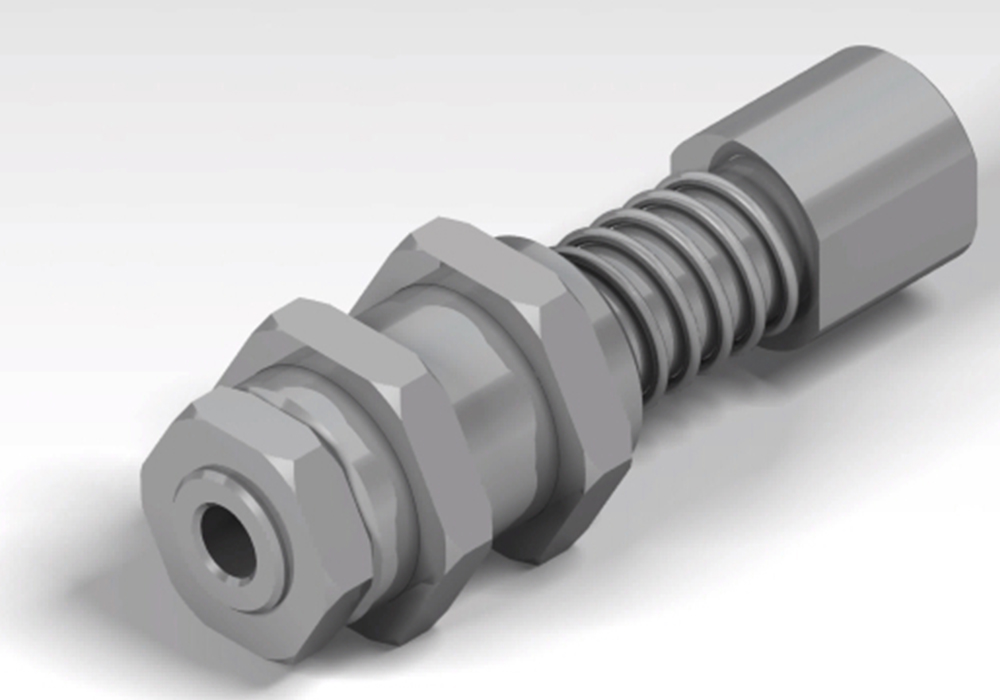

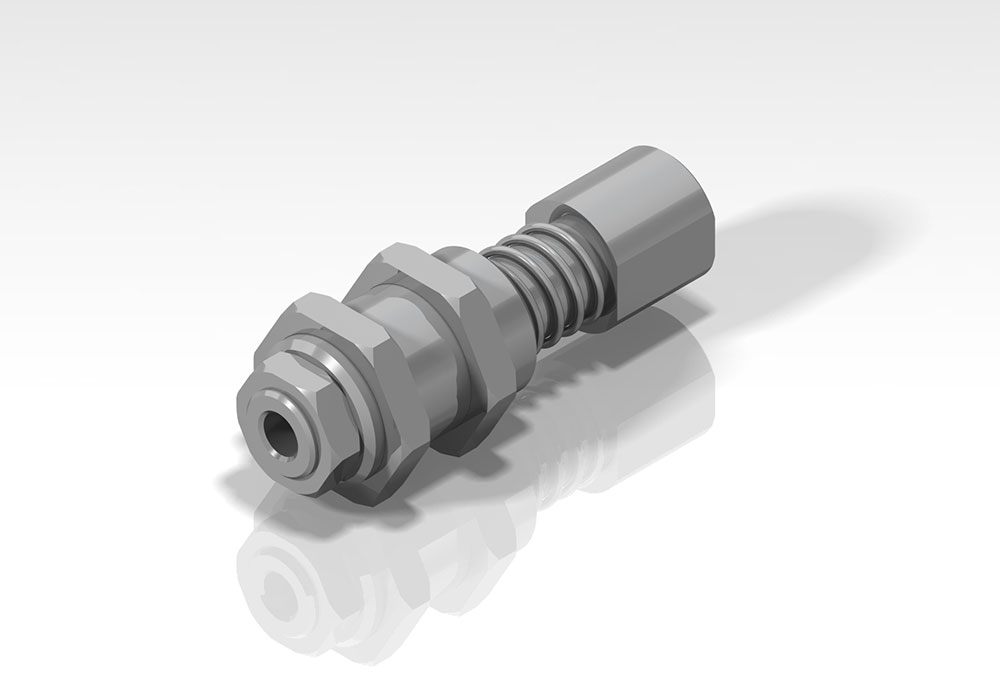

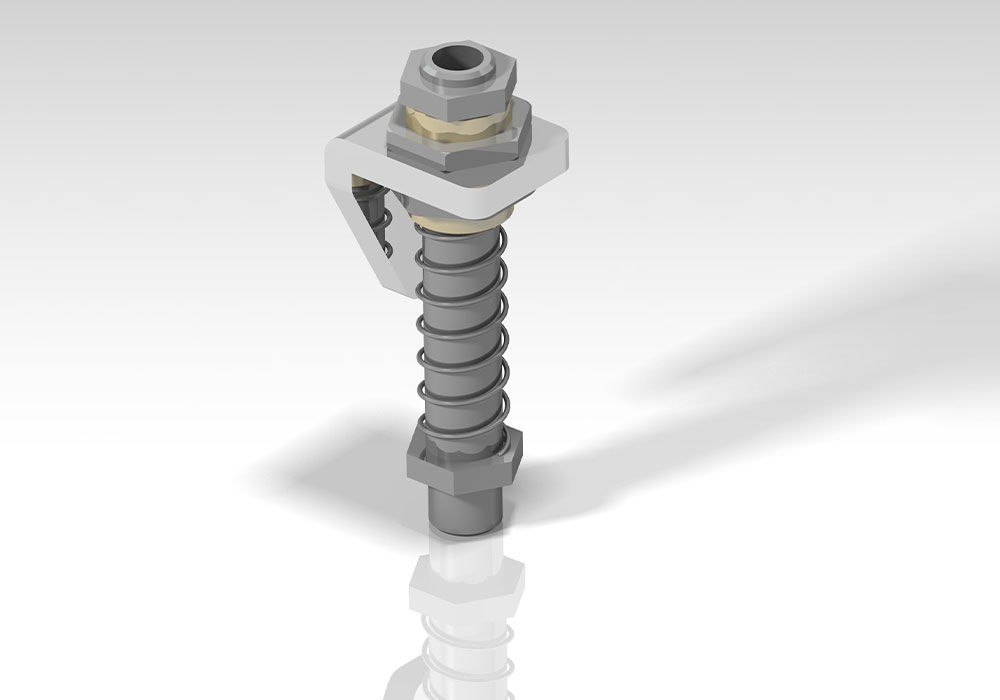

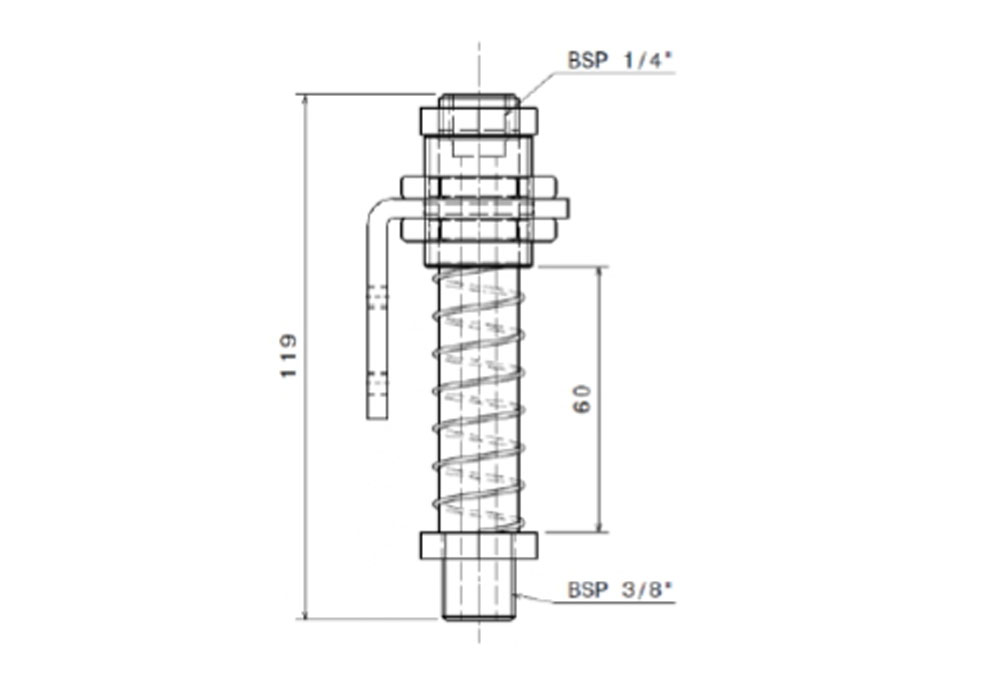

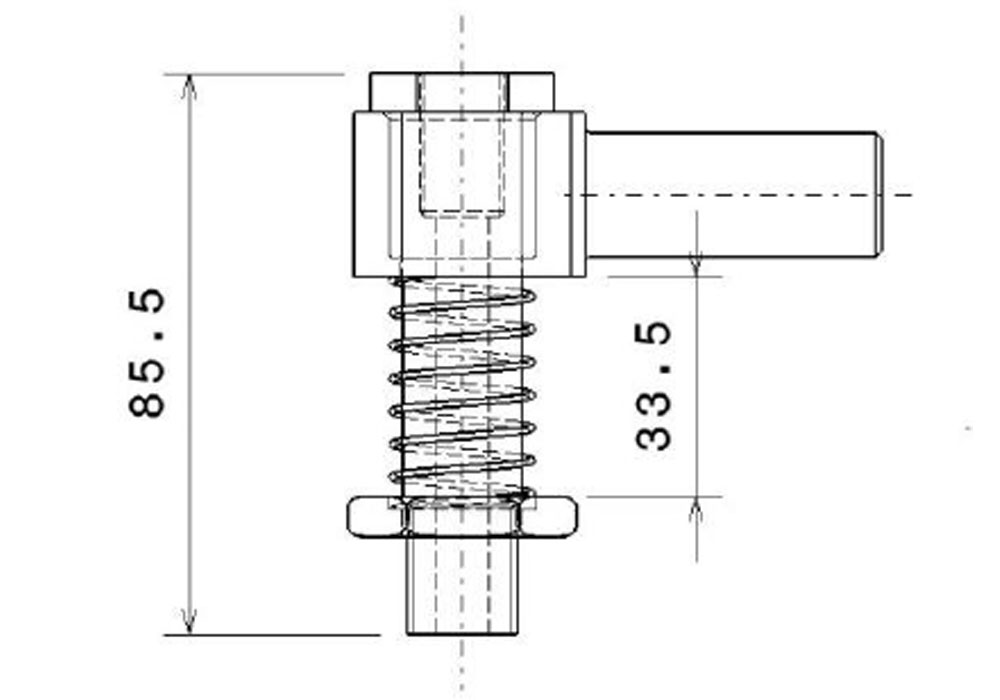

Spring Loaded Bracket Assy
Swivel Arm Assembly
Branch / Rod
Pipe/Aluminium Tube
Customized Mountings

Location:

Copyright 2025 Shobai Automation Pvt. Ltd. All Rights Reserved.

Designed & Developed By :

Hi there! 👋

Fill out the form below to start a conversation with us on WhatsApp.

Your Name

Mobile Number

Service

Hi there! 👋

Fill out the form below to start a conversation with us on WhatsApp.

Your Name

Mobile Number

Service
